USA Standard CSA/UL Certificate CNC Rebar Double Head Bender HB45 #11 rebar

Name: USA Standard CSAUL Certificate CNC Rebar Double Head Bender HB45 11 rebar
Brand: GUTE
Price: 100000 USD

Wholesale USA Standard CSA/UL Certificate CNC Rebar Double Head Bender HB45 #11 rebar from china suppliers

Brand Name : GUTE

Model Number : HB45

Certification : CSA,UL,CE,ISO 9001:2000

Place of Origin : CHINA

MOQ : 1set

Price : 100000-130000USD/SET

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 200set/month

Delivery Time : 35 work days

Packaging Details : plywood case

Model : HB45

Bending diameter : 10-40mm

Rated power : 45KW

Gas source wor : 0.8MPa

Maximum bending angle : -120°~180°

Longest stirrup : 10.8m

Minimum margin spacing : 750mm

Head movement speed : 0.5-1m/sec

L*W*H : 12m×2m×1.6m

Contact Now

USA Standard CSA/UL Certificate CNC Rebar Double Head Bender HB45 380V/440/220V

Overview

1. Complete sets of equipment has UL or CSA certificate;

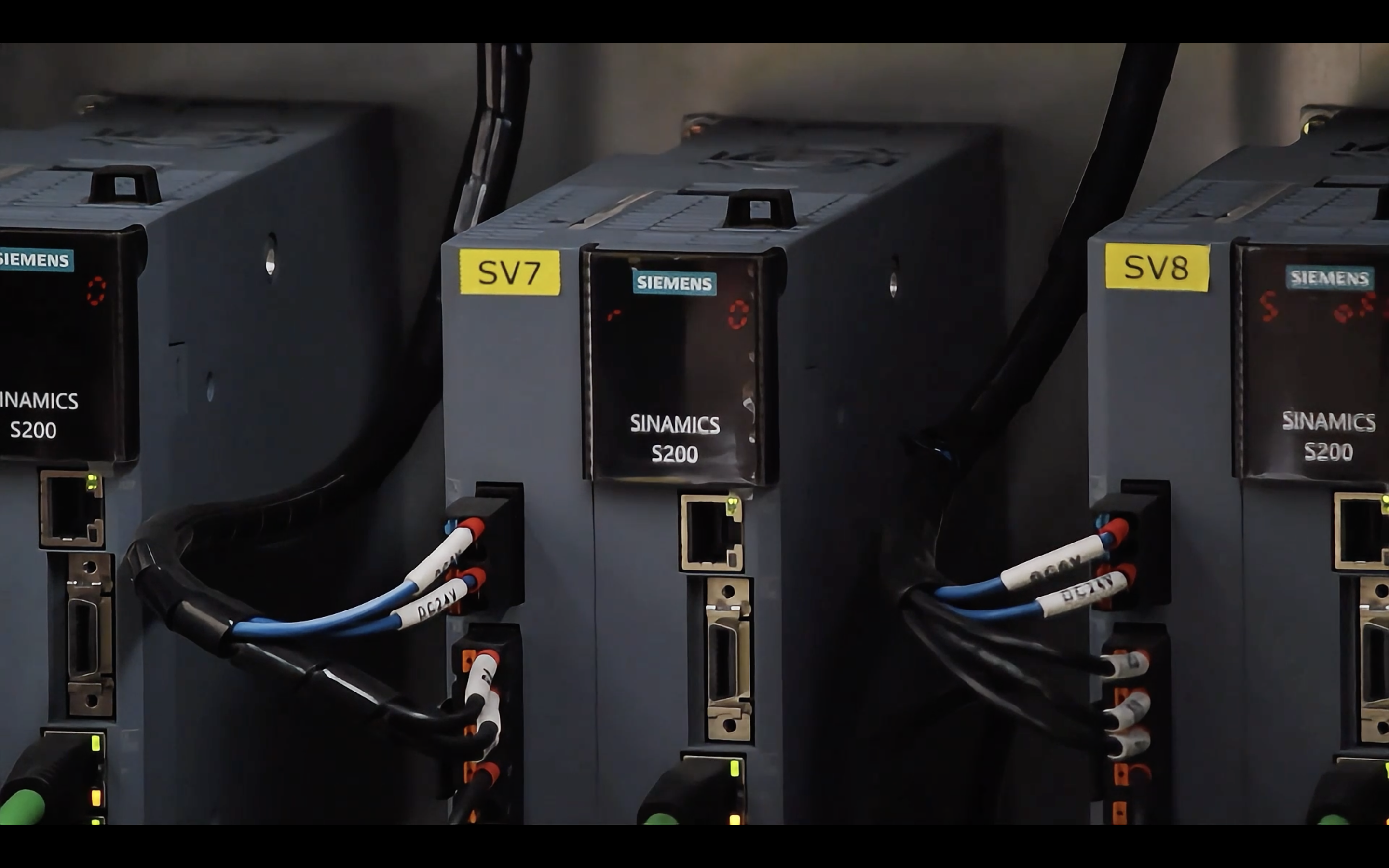

2. The equipment adopts Siemens electrical components, control system, PLC, servo motor, touch screen, etc.;

3. The key pneumatic elements adopt the Fisesto (Germany) brand;

4. Key bearing, oil seal are SKF (Sweden), NSK (Japan) and other international well-known brands;

6. Special design for North America bar bending R and tensile ;

7. The equipment adopts disc tooth structure, long service life, low noise, convenient maintenance, disassembly and maintenance;

8. Modular guide rail frame, bending Angle is more accurate, bending steel bar finished quality is higher;

9. Equipment can Long-term processing of φ 36mm(No.11 in USA) (HRB500);

10. Single fixed, positive and reverse bending reinforcement diameter, bending R standard refer to the requirements of the United States;

11. maximum arc diameter (φ 304mm);

12. Bending speed 50-60° / sec, bending movement speed 0.5-1 m/s;

13. The shortest bending side size of double head is 1.8m for double head bending, and the shortest bending side size of single head is 600mm for signle head bending;

Scope of application

It is mainly used for highway, highway bridge, housing construction, railway and other engineering construction.

Device parameters

rated power	45KW
Air source working pressure	0.8MPa
Maximum bending angle	-120° to 180°
Maximum bending angle	12m
Minimum curved edge spacing	1700mm
Moving speed of machine head	0.5-1m/sec
Fastest bending speed	60°/sec
total weight	7.8t
Average power consumption	15KW/H
LWH	16m×4.5m×1.6m
Diameter	#3	#4	#5	#6	#7	#8	#9	#10	#11
Quantity	7	6	4	4	2	2	2	2	1
Movement Control	Servo
Bending Control	Servo
Power source	pneumatic

Equipment advantages

USA Standard CSA/UL Certificate CNC Rebar Double Head Bender HB45 #11 rebar

The forming wheel can be customized to bend complex rebar patterns.

Complete sets of equipment has UL or CSA certificate;The equipment adopts Siemens electrical components, control system, PLC, servo motor, touch screen, etc.
